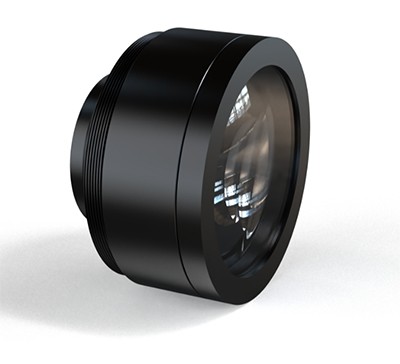

M108_F-theta

Item number

M108_F-theta

Design wavelength

355 nm

Effective focal length

108.3 mm

Max. Entrance aperture

6.0 mm

Optical scan angle

± 28.4°

Scan length (1 mirror system)

107.5 mm

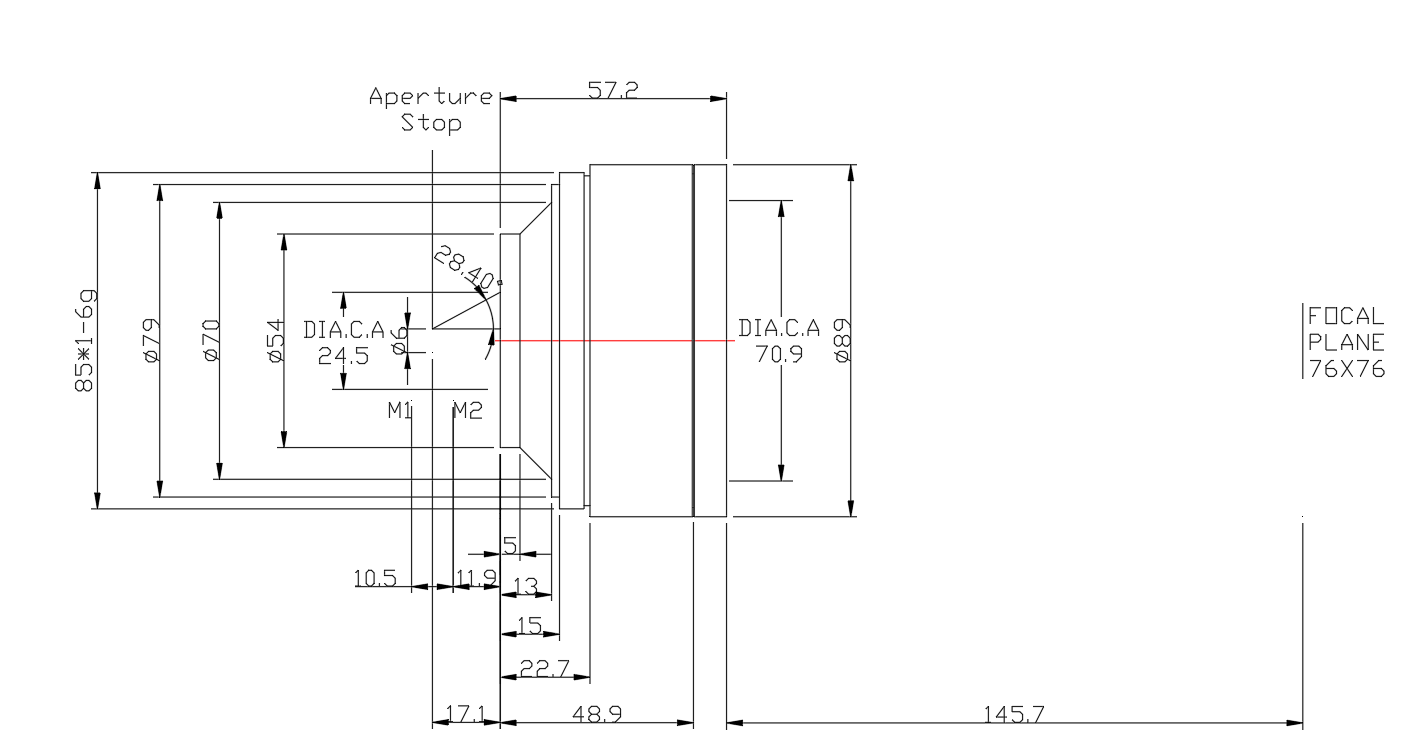

Aperture stop distance

17.1 mm

Working distance

145.7 mm

Scan area for a 2 mirror system with mirror distance from lens housing for mirror2 / mirror1

76×76

11.9 / 22.4

Max. telecentricity error

9.1°

Total transmission

>97%

Lens material

Fused silica

LIDT (coating)

1.0J/cm² per 1ns pulse at 50Hz

SP and USP usable [P/O]

×
