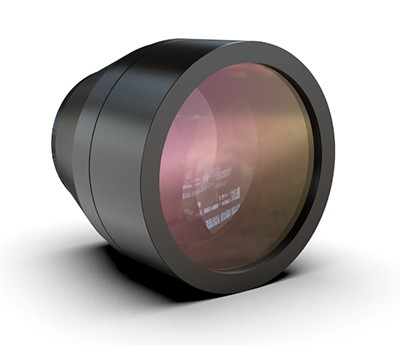

M163_F-theta

Item number

M163_F-theta

Design wavelength

355 nm

Effective focal length

163.0 mm

Max. Entrance aperture

10.0 mm

Optical scan angle

± 16.4°

Scan length (1 mirror system)

91.9 mm

Aperture stop distance

35.2 mm

Working distance

193.7 mm

Scan area for a 2 mirror system with mirror distance from lens housing for mirror2 / mirror1

65×65

27.2 / 43.2

Max. telecentricity error

2.0°

Total transmission

>97%

Lens material

Fused silica

LIDT (coating)

1.0J/cm² per 1ns pulse at 50Hz

1.0MW / cm² cw

SP and USP usable [P/O]

√
