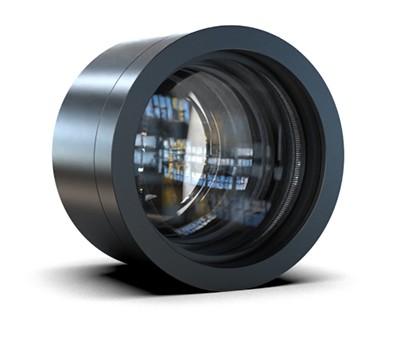

M125_F-theta

Item number

M125_F-theta

Design wavelength

355 nm

Effective focal length

125.0 mm

Max. Entrance aperture

10.0 mm

Optical scan angle

± 17.5°

Scan length (1 mirror system)

75.0 mm

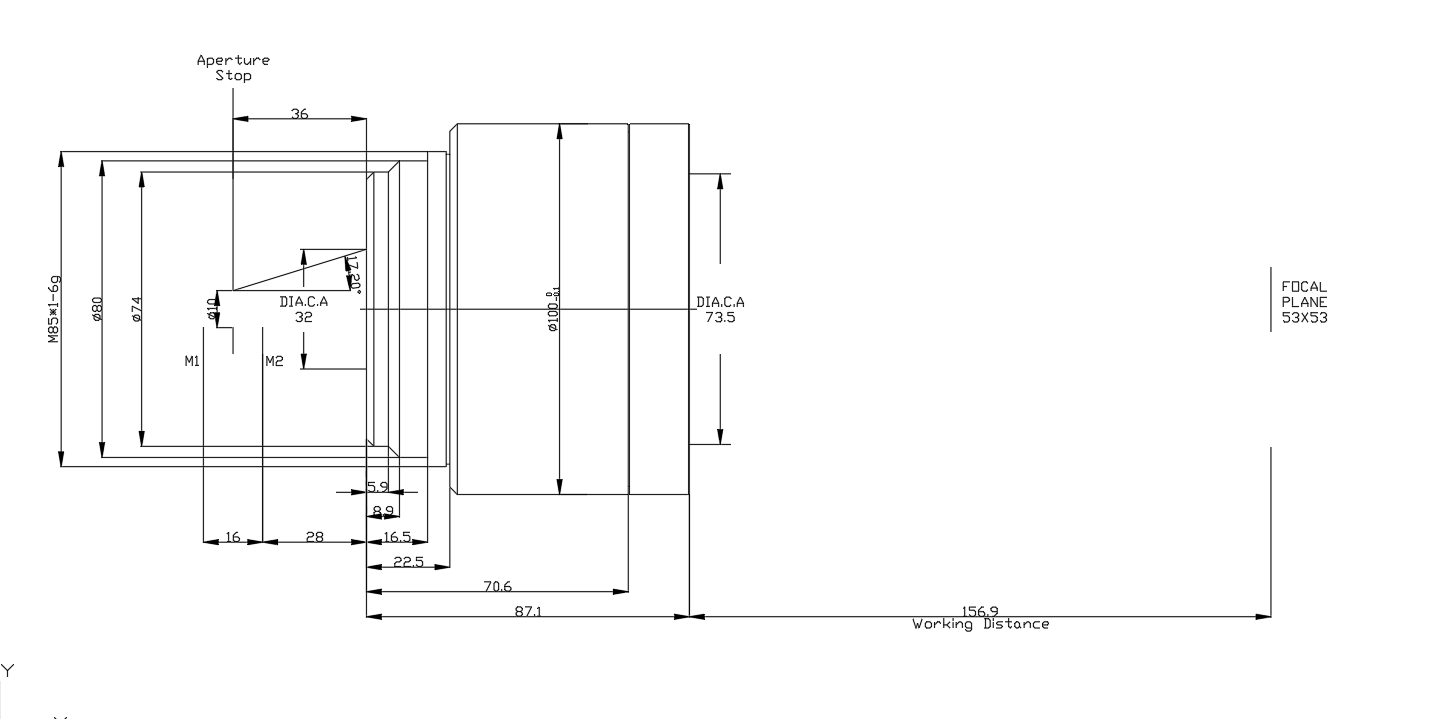

Aperture stop distance

36.8 mm

Working distance

156.9 mm

Scan area for a 2 mirror system with mirror distance from lens housing for mirror2 / mirror1

53×53

28.8 / 44.8

Max. telecentricity error

1.1°

Total transmission

97%

Lens material

Fused silica

LIDT (coating)

1.0J/cm² per 1ns pulse at 50Hz

1.0MW / cm² cw

SP and USP usable [P/O]

√
